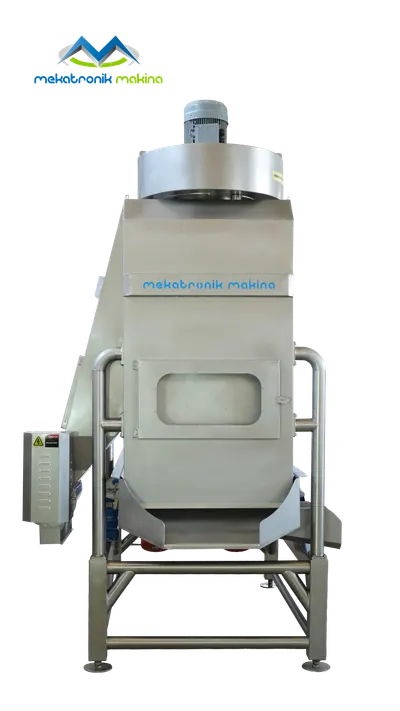

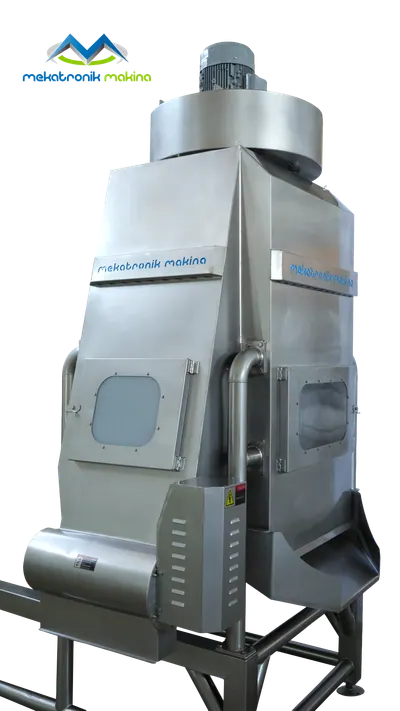

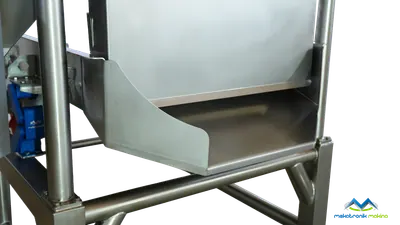

Screening Shaker Machine with Aspiration Unit
Screens stones and soil out of the product dropping onto its screen deck, while drawing off light matter such as leaves, stems and debris by aspiration. It can perform sizing and foreign matter removal on products such as raisins, beans, chickpeas, sunflower seeds and pumpkin seeds.
01Technical specifications
- AISI 304 paslanmaz çelikBody material
- AISI 304 paslanmaz çelik (prosese göre AISI 316 opsiyonel)Product-contact surfaces
- Titreşimli eleme ve aspirasyonlu çöp almaOperation
- Değiştirilebilir paslanmaz elek, hızlı sökülebilir sistemScreen

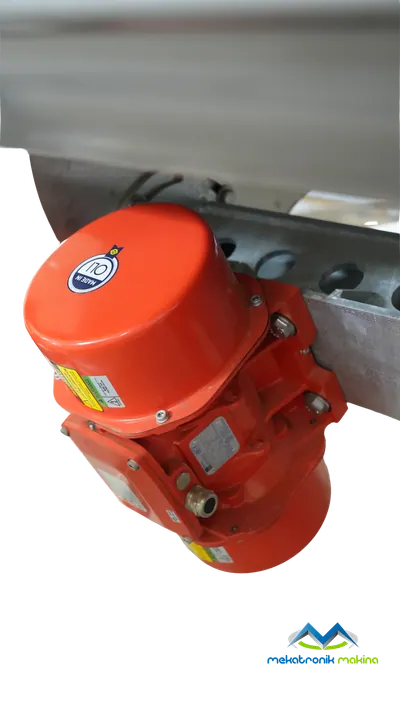

- 2 adet titreşim motoru (2 x 0,75 kW) ve 5,5 kW aspirasyon fanı; toplam güç yaklaşık 7 kWDrive
- Projeye özel belirlenirCapacity
- 380 V / 50 HzPower supply
- Kolay erişilebilir bakım kapakları ile hızlı temizlikCleaning
Values vary by project; exact figures are finalised in the quote. Motors, gearboxes, bearings and electrical equipment are standard parts in their own classes.
02Working principle
- 01
The product dropping onto the screen deck is sieved, separating out objects such as stones and soil.
- 02
Light matter such as leaves, stems and debris is drawn off by aspiration and discharged.
What it delivers
- Combines screening and aspiration in a single machine
- Can be used on different products such as raisins, beans, chickpeas, sunflower seeds and pumpkin seeds
- Performs sizing and foreign matter removal together
03Equipment
Standard equipment

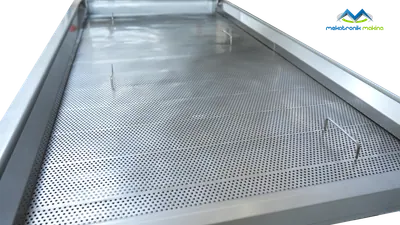

- Stainless screens made specifically for the product group
Optional equipment
- Bottom-blown model (blowing carries the debris to the aspirator faster)
04Its place on the line
Processing lines this machine works on

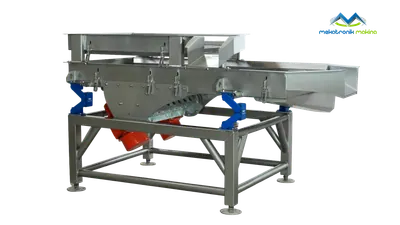

Other machines in the Screening and Debris Removal Machines group
The whole group
Let's prepare a quote for the Screening Shaker Machine with Aspiration Unit
Send your product, target capacity and facility dimensions; we will come back with a quote covering the station list, lead time and price.
