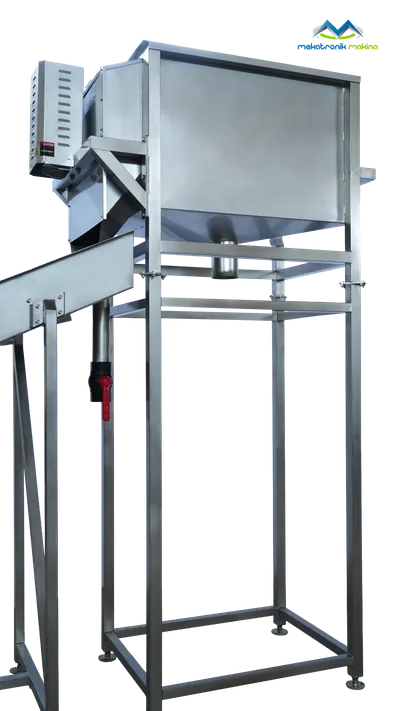

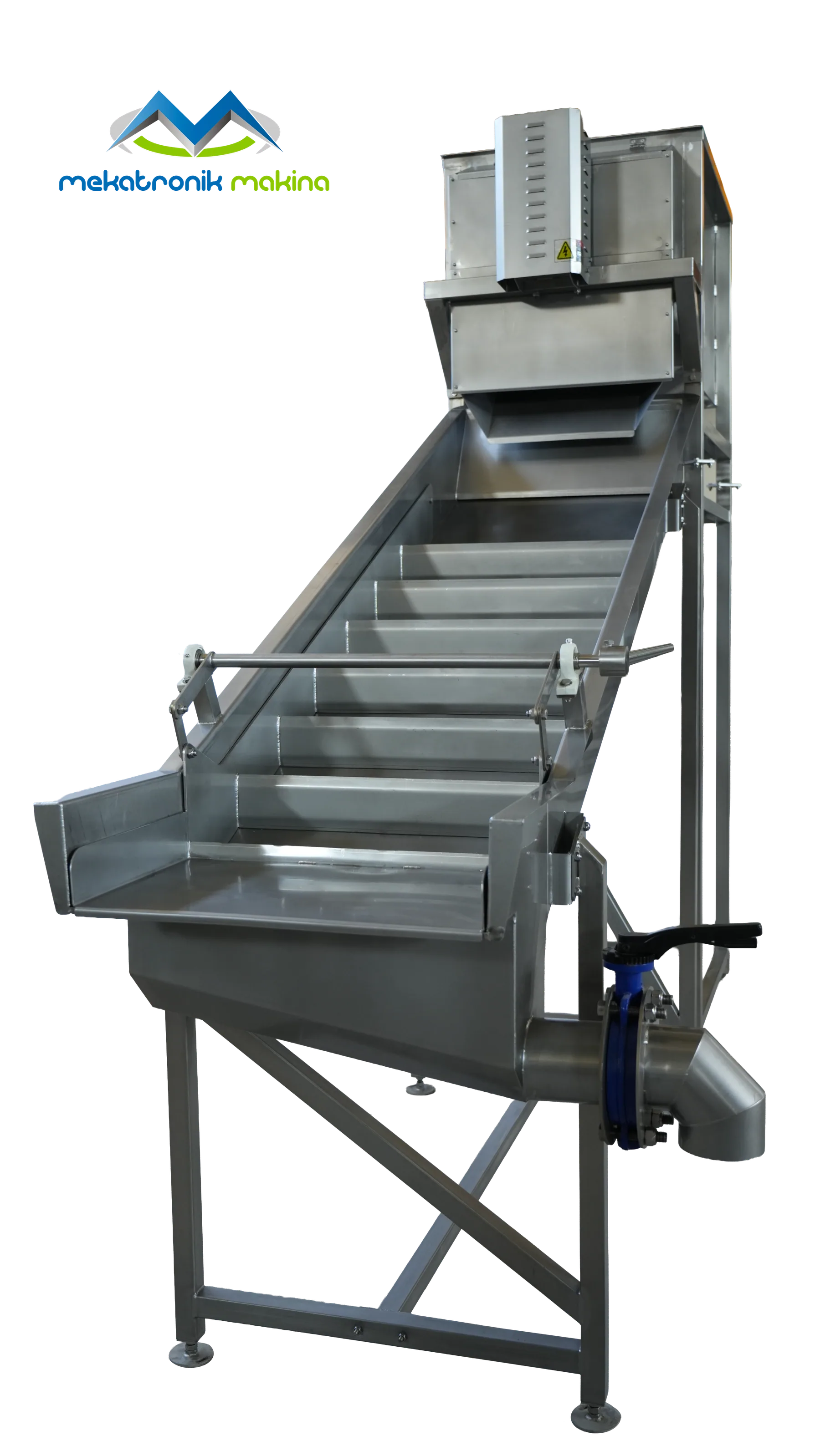

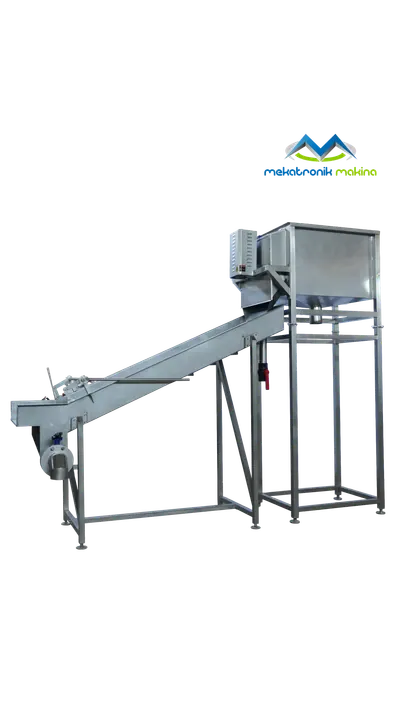

Stone and Sand Separation Cascade
Product dropping onto the cascade together with water is cleared of foreign matter such as stones, sand and gravel. Thanks to the waterfall lifting lever, it can be cleaned whenever needed.
01Technical specifications
- AISI 304 paslanmaz çelikBody material
- AISI 304 paslanmaz çelik (prosese göre AISI 316 opsiyonel)Product-contact surfaces
- Döner elek ön ayırma ve 7 kademeli şelale (kaskat) yıkamaOperation
- Su akışı ile taşımaConveying system
- Sürekli temiz suWater feed
- Redüktörlü tahrik sistemiDrive
- Projeye özel belirlenirCapacity
- 380 V / 50 HzPower supply
Values vary by project; exact figures are finalised in the quote. Motors, gearboxes, bearings and electrical equipment are standard parts in their own classes.
02Working principle
- 01
The product drops onto the cascade together with water.
- 02
Heavy foreign matter such as stones, sand and gravel is separated from the product.
- 03

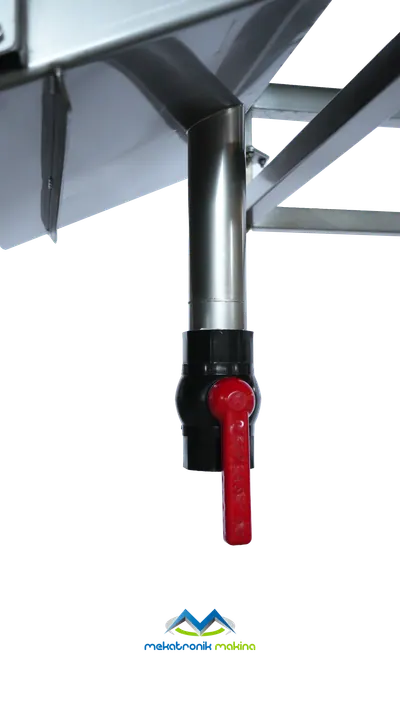

The waste water trough underneath holds back large debris, reducing the risk of drain blockage.
What it delivers
- Separates stones, sand and gravel within the washing flow
- Because the waste water trough holds back large debris, it reduces the risk of drain blockage
- Practical to maintain and clean
03Equipment
Standard equipment
- Easy cleaning with the waterfall lifting lever
- Specially designed waste water trough that reduces the risk of drain blockage
04Its place on the line
Processing lines this machine works on
Other machines in the Washing Machines group
The whole groupLet's prepare a quote for the Stone and Sand Separation Cascade
Send your product, target capacity and facility dimensions; we will come back with a quote covering the station list, lead time and price.
