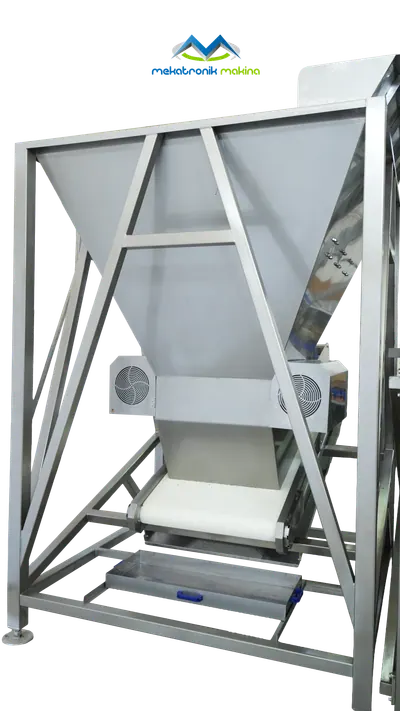

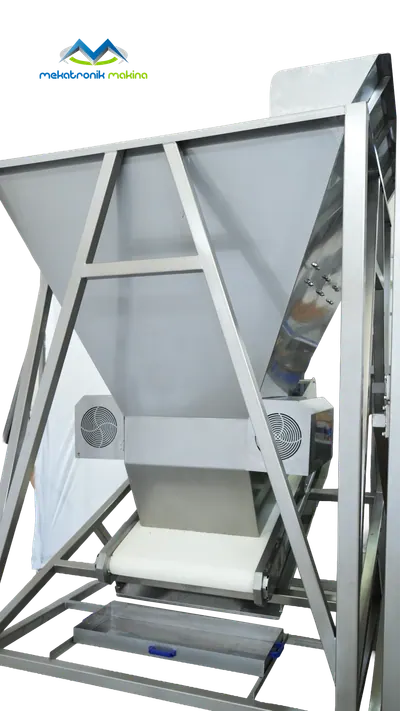

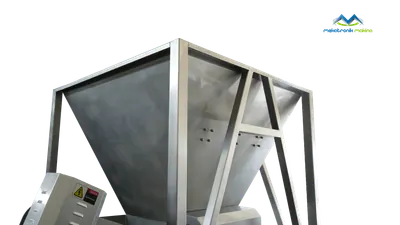

Agitated Dosing Hopper
Doses the product that pours out of the crate tipping machine in bulk and in lumps; the agitators inside break the lumps into smaller pieces so the product transfers smoothly onto the conveyor belt.
01Technical specifications
- AISI 304 paslanmaz çelikBody material
- Gıda uyumlu PVC / PU bant ve AISI 304 paslanmaz çelik hazne (prosese göre AISI 316 opsiyonel)Product-contact surfaces
- Çapalı topan kırma ve bantlı dozajlamaOperation
- Redüktörlü motorDrive
- Frekans invertörü ile ayarlanabilirBelt speed
- Projeye özel belirlenirCapacity
- 380 V / 50 HzPower supply
- Elektronik el kumandası; PLC kontrollü veya bağımsız çalışmaControl
Values vary by project; exact figures are finalised in the quote. Motors, gearboxes, bearings and electrical equipment are standard parts in their own classes.
02Working principle
- 01

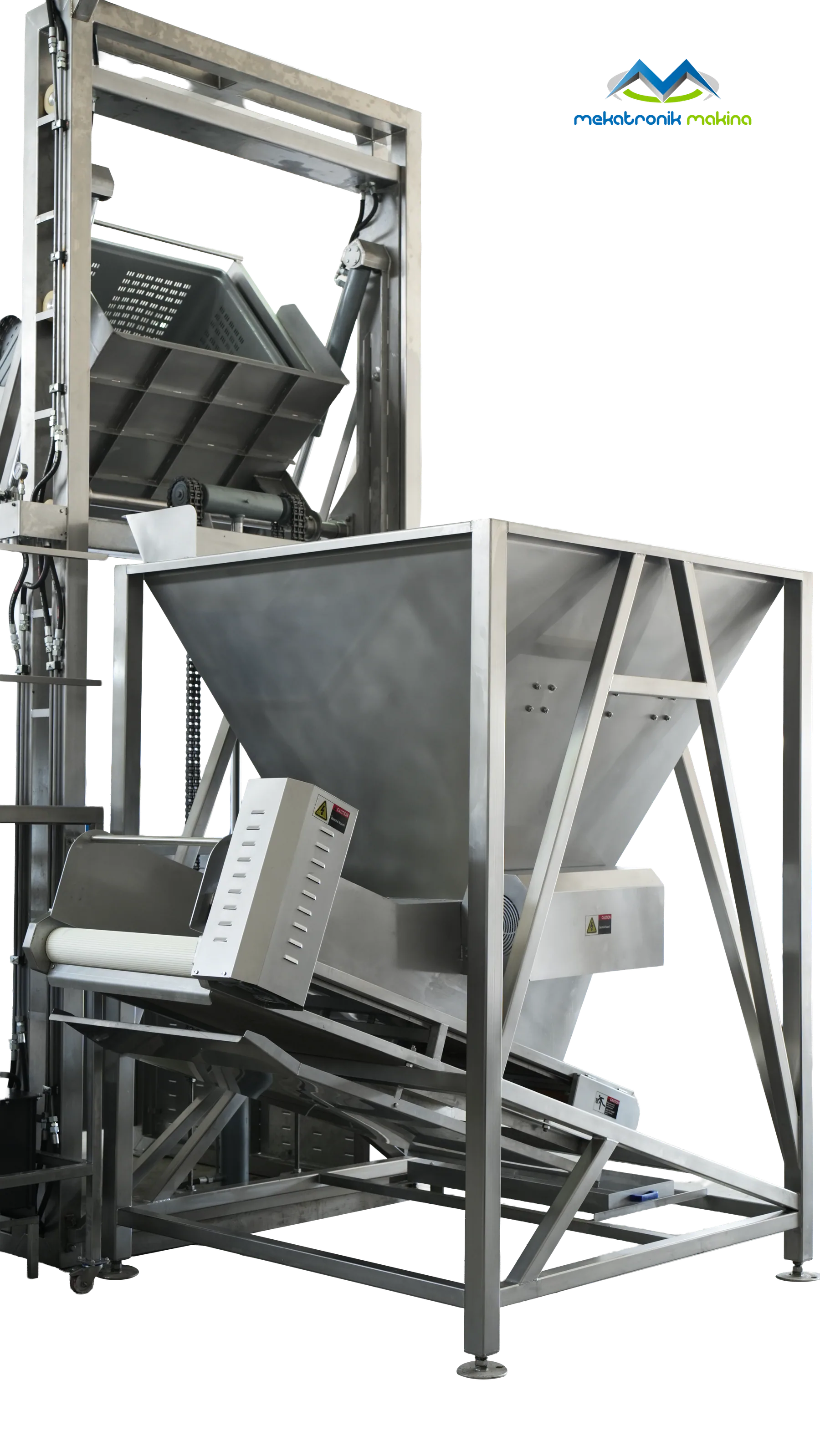

The lumped product coming from the crate tipping machine is poured into the hopper.
- 02
The agitators inside break the lumped product into smaller pieces.
- 03

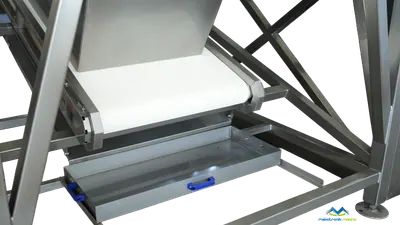

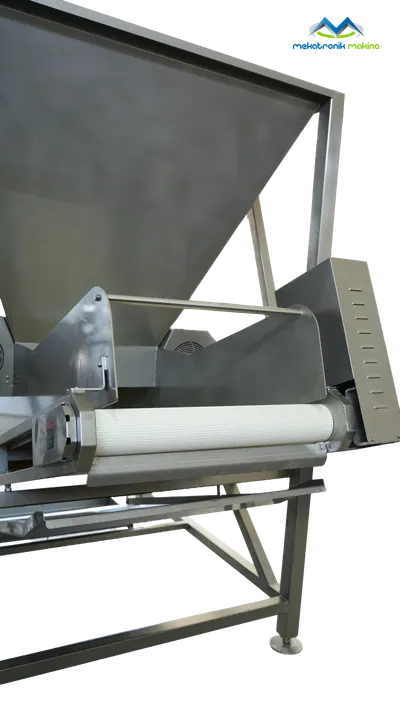

The product is dosed and transferred onto the conveyor belt.
What it delivers
- Regulates the line feed by breaking up lumped product
- Comfortable operation with hand control
03Equipment
Standard equipment
- Lump-breaking agitator system
- Electronic hand-control system
Optional equipment
- Custom shapes and dimensions built for the place and purpose of use
04Its place on the line
Processing lines this machine works on
Other machines in the Conveyors group
The whole group
Let's prepare a quote for the Agitated Dosing Hopper
Send your product, target capacity and facility dimensions; we will come back with a quote covering the station list, lead time and price.
