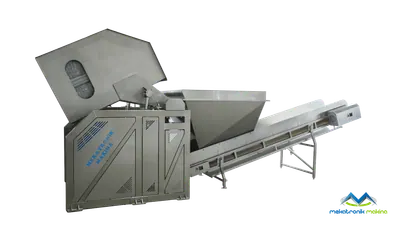

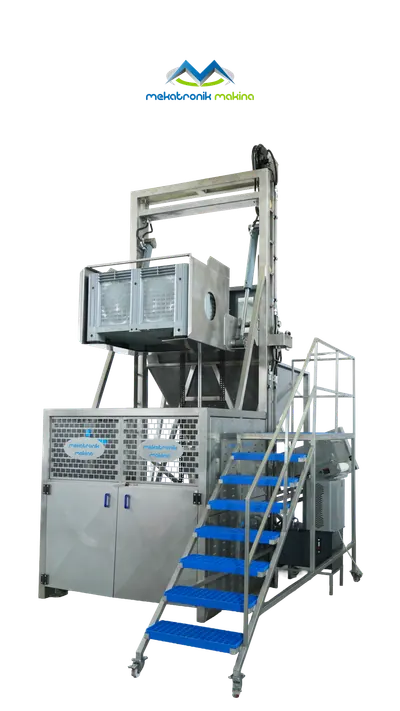

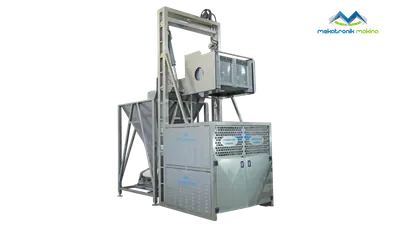

Crate Tipping Machine
Tips crates of standard dimensions in a controlled motion, emptying the product into the dosing hopper. With its hydraulic and electronic equipment, it provides fast and safe feeding at the head of the line.
01Technical specifications
- AISI 304 paslanmaz çelikBody material
- AISI 304 paslanmaz çelik (prosese göre AISI 316 opsiyonel)Product-contact surfaces
- Hidrolik kaldırma ve devirmeOperation
- Ürüne göre ayarlanabilir (maksimum yaklaşık 135°)Tipping angle
- Plastik, ahşap veya metal kasaCrate type
- Hidrolik güç ünitesiDrive
- Projeye özel belirlenirCapacity
- 380 V / 50 HzPower supply
- PLC kontrollü veya manuelControl
Values vary by project; exact figures are finalised in the quote. Motors, gearboxes, bearings and electrical equipment are standard parts in their own classes.
02Working principle
- 01

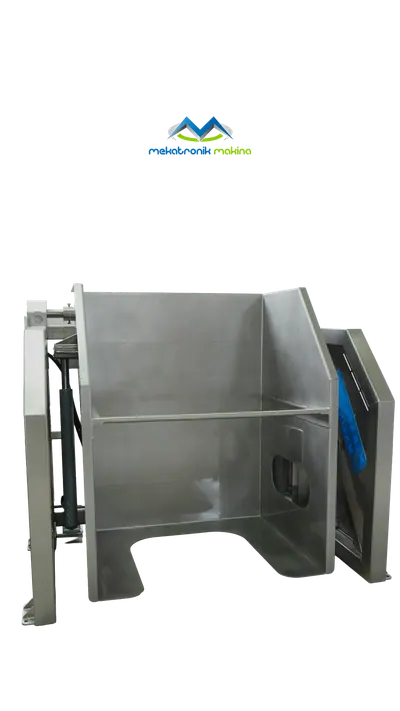

The full crate is placed on the machine platform by forklift or pallet truck.
- 02
The operator starts the tipping cycle from the control panel.
- 03
The hydraulic lifting system raises the crate in a controlled motion.
- 04

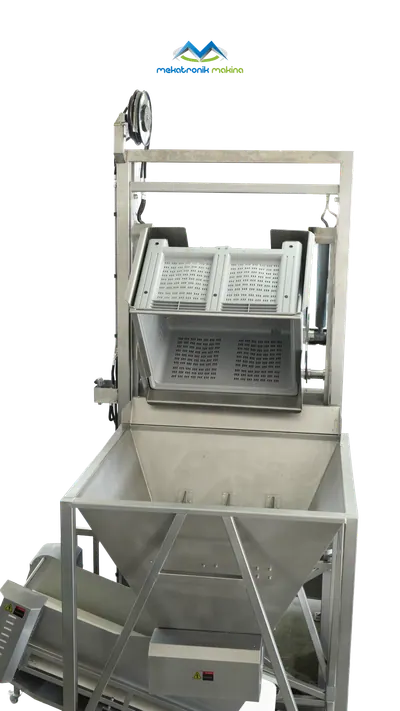

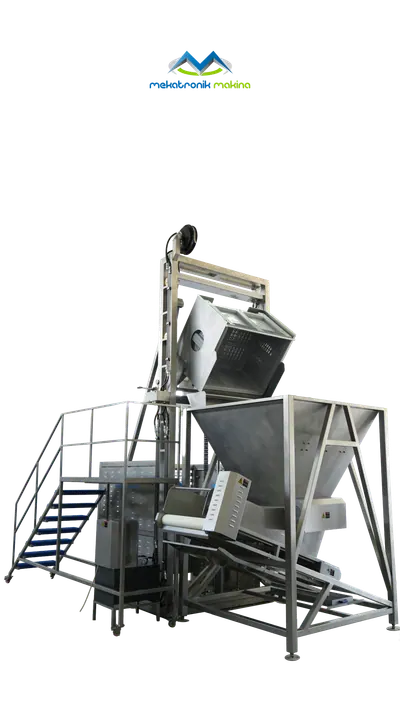

When the set tipping angle is reached, the product empties into the feed hopper or conveyor.
- 05
The empty crate is returned to its starting position, ready for the next cycle.
What it delivers
- Hydraulic lifting speeds up crate emptying compared with manual transfer; the cycle time is measured jointly during commissioning

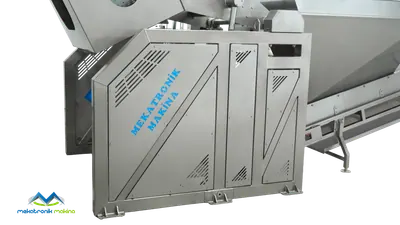

- Front covers that disable the system when opened keep the operator away from moving parts
- Comfortable to use and easy to clean
03Equipment
Standard equipment

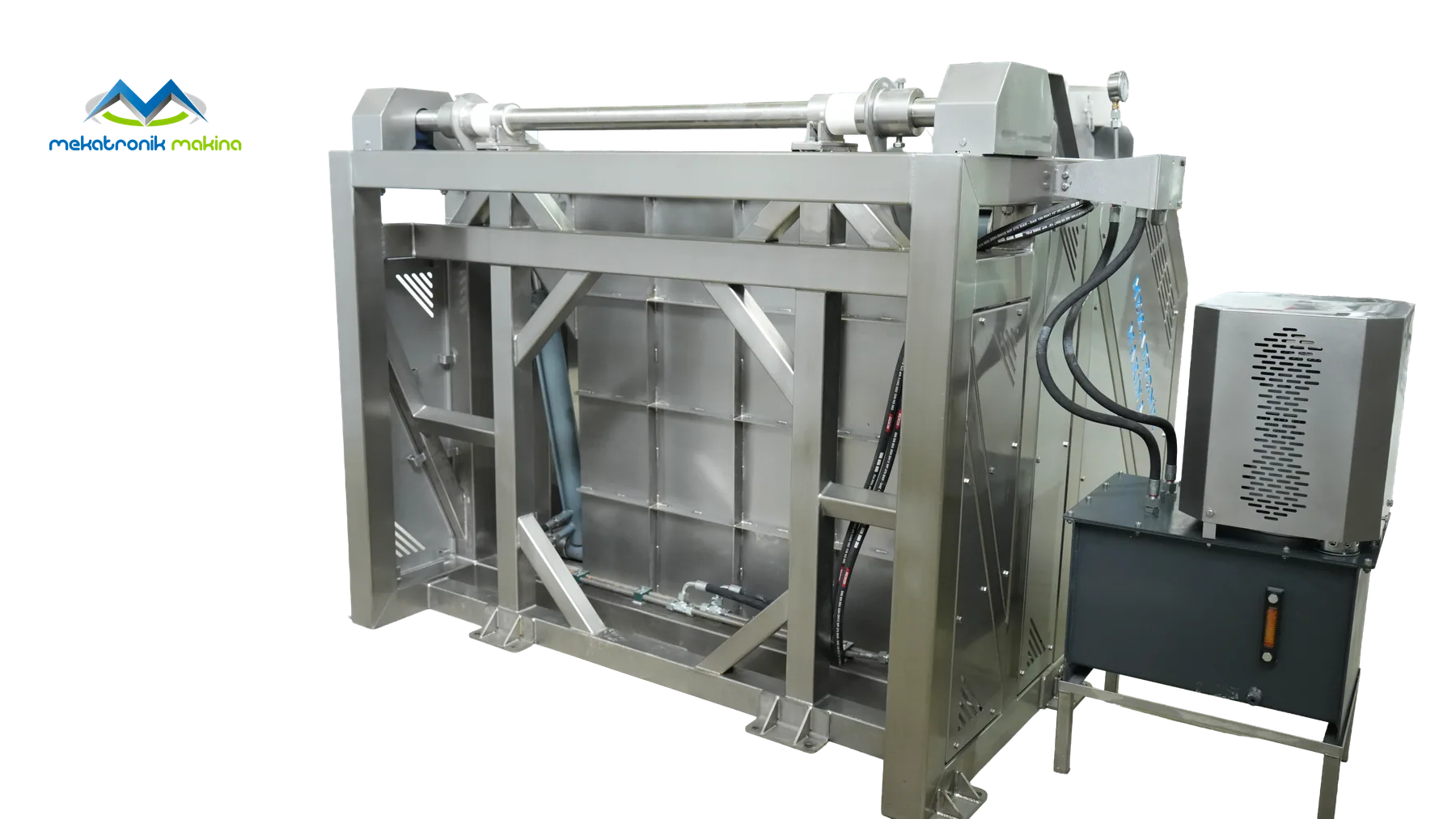

- AISI 304 stainless box-profile chassis
- Hydraulic lifting system

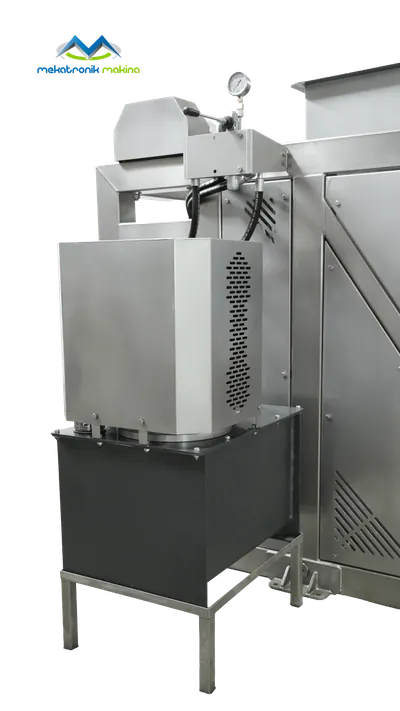

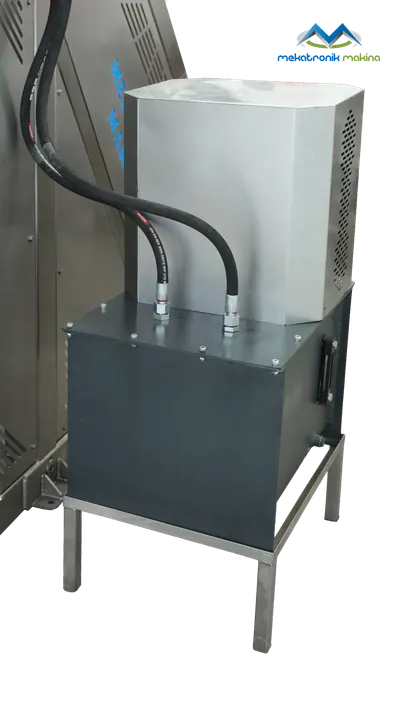

- Hydraulic power unit
- Safety interlock system
- AISI 304 stainless product-contact surfaces
- Safety sensors
- Emergency stop button
- Accessible maintenance points
Optional equipment
- AISI 304 stainless steel across the whole body (hydraulic unit, sensors and electrical equipment excluded)

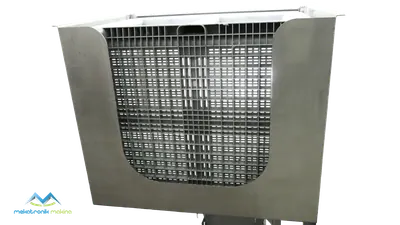

- Platform for different crate dimensions
- Line automation integration
- Custom lifting capacity
