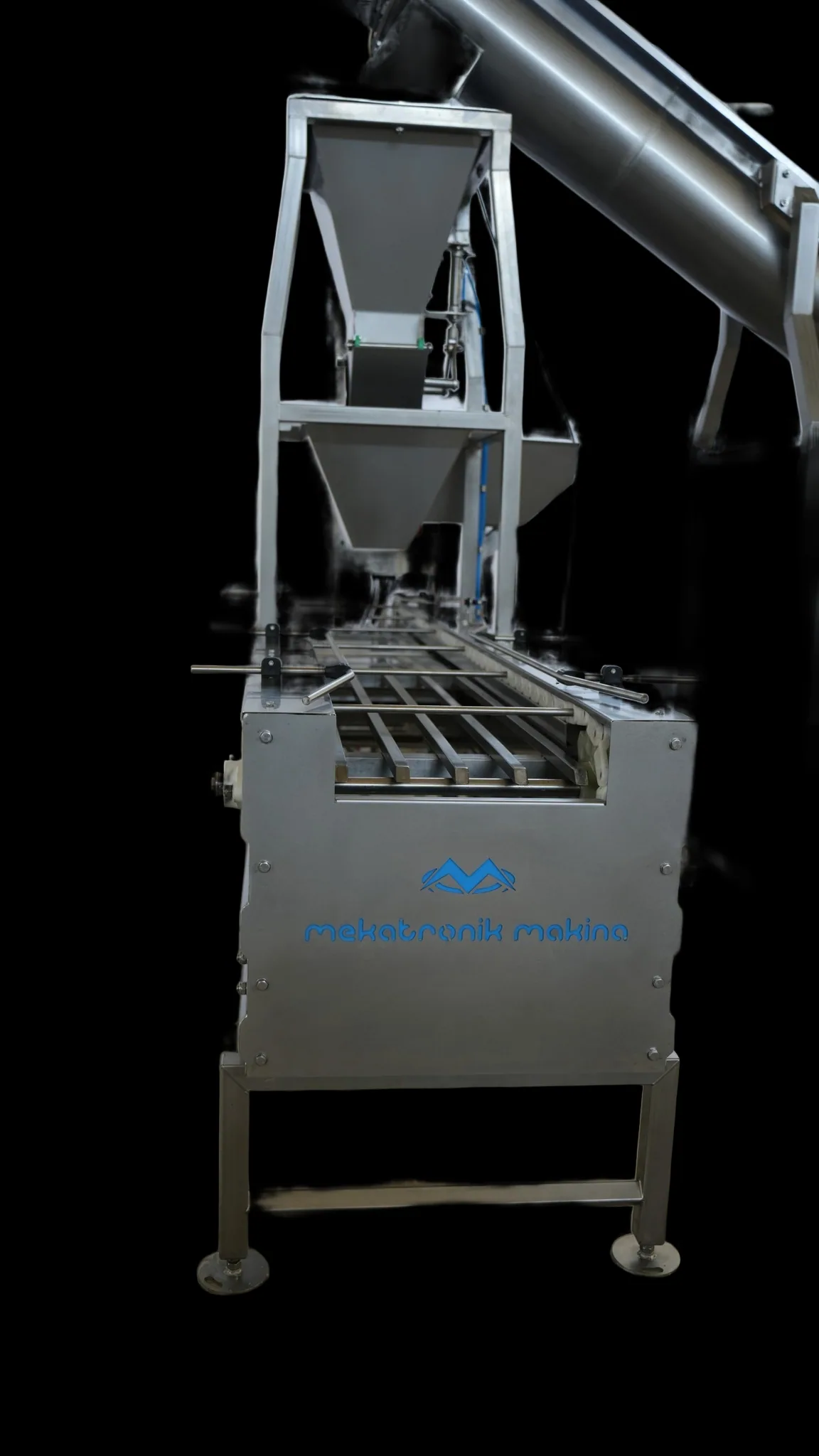

Semi-Automatic Box Filling Scale
Performs controlled coarse and fine filling of the product into boxes. The drag arms moving over the weighing system keep the boxes advancing safely at equal intervals.
01Technical specifications
- AISI 304 paslanmaz çelikBody material
- Gıda ile temas eden tüm yüzeyler AISI 304 paslanmaz çelikProduct-contact surfaces
- Loadcell esaslı tartım sistemi; kaba ve hassas olmak üzere iki aşamalı kontrollü dolumOperation
- Tartım sistemi üzerinde hareket eden sürükleme kollarıyla kutu ilerletmeDrive
- Ürün ve hedef ağırlığa bağlı olarak ayarlanabilir; projeye özel belirlenirCapacity
- 380 V / 50 HzPower supply
- Özel olarak programlanmış elektronik kontrol panosuControl
- Kolay sökülebilir ve hijyenik tasarımCleaning
Values vary by project; exact figures are finalised in the quote. Motors, gearboxes, bearings and electrical equipment are standard parts in their own classes.
02Working principle
- 01
The product is filled into the boxes in a controlled way, first coarse then fine.
- 02
The drag arms on the weighing system advance the boxes at equal intervals.
- 03
The filling process is managed from the electronic panel.
What it delivers
- Fills in two stages, coarse and fine; the target weight tolerance is set jointly during commissioning
- Keeps the boxes advancing safely at equal intervals
03Equipment
Standard equipment
- Weighing system with coarse and fine filling
- Box-advancing drag arms
- Specially programmed electronic control panel
